Quality Inspection for Chrome Carbide Overlay - WD1000/1100 Wear Plate – Wodon Detail:

production introduction

WD1000/WD1100 series
Abrasion Resistant Chromium Carbide Overlay

WD1000/WD1100 is chromium carbide composite cladding fusion bonded to a mild steel backing plate. The deposit has been realized by means of flux cored arc welding. WD1000/WD1100 wear plate is suitable for application involving high abrasion and low to medium impact.

● WD1000/WD1100 series:

Common chromium carbide wear plates produced by flux cored arc welding; Suited for applications involving high abrasion and low to medium impact.

Chemicals	Hardness	Sheet Size	Base Metal
C – Cr – Fe	HRC 58-63	1400*3400	Q235/Q345. etc

Chemical Composition(%)	C	Cr	Mn	Si	Fe	Other
	3.0-5.0	15.0-35.0	1.0-3.0	1.0-3.0	Bal.	-
Hardness	HRC 58-65
Standard Thickness(mm)	3+3; 4+4; 5+5; 6+4; 6+6; 8+4; 8+6; 8+8; 10+10; 12+12; etc (overlay thickness up to 50mm)
Standard Sheet Size(mm)	14003400; 15003000; 2000*3000; (Customized size available)
ASTM G65 Procedure A	0.12 – 0.18g
Operating Temperature	<400 ℃
Base Metal Material	Q235B, Q345B; A36; S235JR and structural steels
Main Industry	Mining, glass industry, cement plant, steel mill, power plant, etc
Fabrication	Plasma cutting, Gouging, Countersunk, stud bolt, Bending

We can customize the plates in different sizes and thickness based on customer’s drawings. we can also cut, bend and weld the wear plates into specific shapes and parts

Characteristics:

* Chromium carbide overlay wear resistant plate
* Chemical Composition: C: 3.0-5.0% Cr: 18-30%
* Chromium carbide Cr7C3 volume fraction about 40%
* The thickness of wear resistant layer can reach up to 50 mm
* Heat resistance up to 600°C
* Lager standard wear resistant area 1400*3400mm, 1500*3000mm, 2000*3000mm
* Better flatness with smooth surface
* Hardness: HRC58-65

open arc wear plate

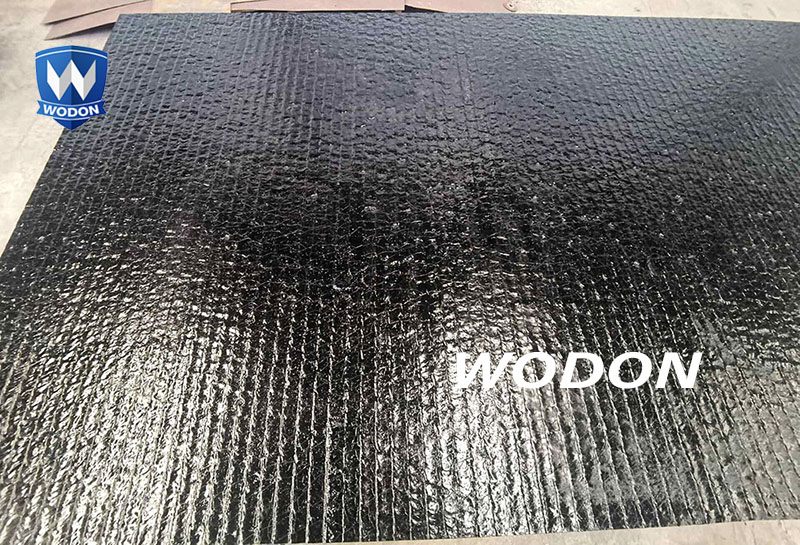

open arc wear plate04
open arc wear plate02
open arc wear plate03

Note:Carbon and Chromium content varies in different plate.
